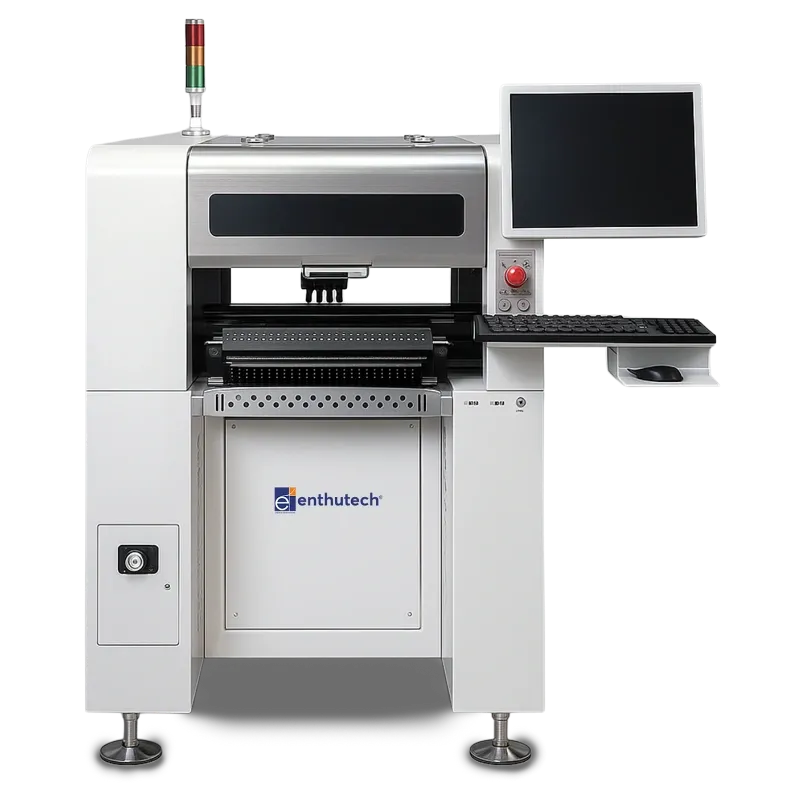

SMTMATE® Vertical 44F - 4 Head + 44 Feeders Support
SMTMATE® Vertical 44F - 4 Head + 44 Feeders Support
Overview
The SMTMATE® Vertical 44F is a high-precision SMT pick & place machine engineered for stable, accurate, and continuous electronic manufacturing. Designed with a robust motion control system, intelligent vision technology, and flexible feeder compatibility, it ensures consistent component placement across a wide variety of PCB assemblies. Equipped with advanced recognition cameras, high-accuracy mounting heads, and a reliable conveyor handling system, the machine delivers excellent repeatability and smooth operation. Its Windows-based SMT operating system and industrial-grade control architecture allow efficient programming, easy job handling, and dependable performance for modern SMT production lines.
- 0.01 mm precision with high repeatability.
- Up to 8000 CPH stable mounting speed.
- 6-camera vision system for accurate component detection.
- Compatible with 0201 to BGA components.
- 44 feeder support with multiple feeder types.
- ±180° rotation for complex IC placement.
- Automatic PCB positioning via three-stage conveyor.
- Industrial control PC + SMT intelligent OS.
| Category | Specification |
|---|---|
| Number of Placement Heads | : 4 (high-accuracy) |
| Number of IC Trays | : 48 |
| Number of Feeders | : 44 (subject to 8mm feeder) |
| Positioning Accuracy | : 0.01mm |
| Repeated Mounting Accuracy | : 0.02mm |
| Range of Mounting Speed | : 5000 - 8000 Pcs/h |
| Applicable Components | : resistor, capacitor, chip, lamp bead etc. |
| Supported Maximum Area of PCB | : 350 × 280mm |
| Feeders | : electric feeder, pneumatic feeder, vibrating feeder, IC tray etc. |
| Recognition Devices | : mark camera x1, fast recognition camera x4, high-precision camera x1 |
| Maximum Height of Applicable Components | : < 7mm |
| PCB Convey Mode | : three-stage entry, automatic connection from left to right, automatic PCB positioning |
| Mark Positioning | : manual / automatic |
| Programming Method | : automatic programming after manually importing files of PCB coordinates |
| Control System | : Huawei Guochuang control system |
| Maximum Step Length of XY Axis | : 629mm × 679mm |
| Tracks of XY Axis | : double linear motion guide + double ground ball screw |
| Motion Mode of XY Axis | : intelligent linkage of acceleration and deceleration of curve and line, integrated linear interpolation algorithm |
| Control Computer | : industrial control computer with Intel high-performance processor |
| Adjusting Method of Tracks | : electric |
| Range of Nozzle Buffer | : 4.5mm |
| Maximum Step Length of Z Axis | : 20mm |
| Range of Angle for Components | : ±180° |
| Air Supply Requirements | : oil water filter > 60L, dust filter and air pressure stabilizer etc. |
| Vacuum Supply of Nozzle | : Japanese CKD vacuum generator integrating the high-speed vacuum burst function |
| Range of Air Supply Pressure | : 0.5 - 0.6mp |
| OS | : Independent research and development SMT intelligent OS based on Windows |
| Vision Display | : 17-inch industrial control display |
| Cable | : German IGS durable flexible cable (10 million times) |
| Power Supply | : 220 V 50 / 60 HZ |
| Average Power | : 600 W |
| Machine Dimension | : 1140mm × 900mm × 900mm |
| Weight | : 280Kg |
