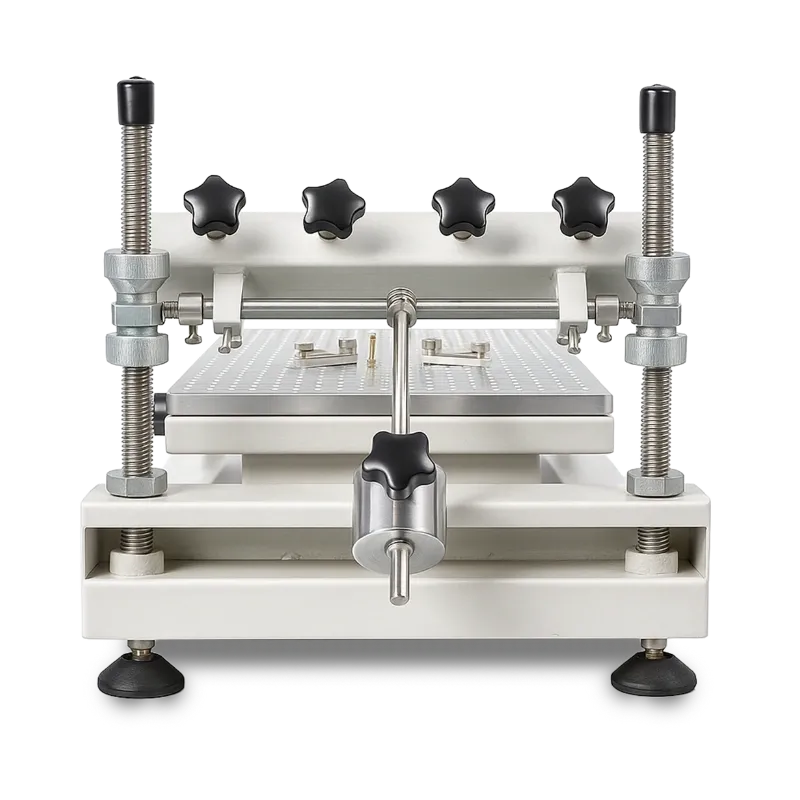

ETS - Manual Stencil Printer
ETS - Manual Stencil Printer
Overview
A compact and cost-effective stencil printer designed for R&D labs, training centers, startups, and small-batch production. It offers good printing accuracy with simple manual operation and minimal setup space, making it ideal for entry-level SMT applications.
- Cost-Effective – Low investment, ideal for startups, R&D labs, and small-batch production.
- High Printing Accuracy – Fine adjustment knobs and stable PCB clamps for precise solder paste deposition.
- Easy to Operate—Simple manual design, quick stencil alignment, and minimal training required.
- Versatile PCB Handling – Adjustable platform supports multiple PCB sizes and frames.
- Durable Construction—Strong metal body ensures long life, stability, and consistent performance.
- Compact Design—Space-saving desktop unit, easy to install in small workshops.
- Improved Quality—Reduces solder defects like bridging and insufficient paste, ensuring reliable assemblies.
| Specification | Details |
|---|---|
| Dimensions | : 540×370×350 mm |
| Platform Size | : 300×400 mm |
| PCB Size | : 250×400 mm |
| Template Size | : 370×470 mm |
| Printing Speed | : Manual Control |
| PCB Thickness | : 0-3 mm |
| PCB Tuning Range | : Front/Side ±10 mm |
| Platform Height | : 220 mm |
| Repeatability | : ±0.01 mm |
| Positioning Method | : Outside/Reference Hole |
| Weight | : 35 Kg |
